Draw your own Sankey diagram for your country, thanks to the example of EU28 below.
The link to draw on line your Sankey Diagram here
Energy balance sheet for your country here
Definitions of key elements in the energy balance
Gross inland consumption = Primary production + Primary product receipt + Other sources (recovered products) + Recycled products + Imports + Stock changes – Exports – Bunkers – Direct use
Available for final consumption = Gross inland consumption – Transformation input + Transformation output + Exchanges, transfers and returns – Consumption of the energy branch – Distribution losses
Statistical difference = Available for final consumption – Final non-energy consumption – Final energy consumption
The difference between input and output values are losses.
Example :
|
|
|

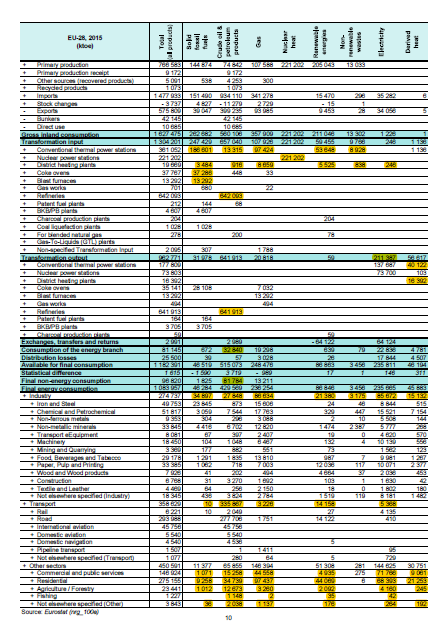

Energy balance sheet (main values are highlight) |
Excel worksheet |
Sankey diagram |
